I am simulating stress/strain on an assembly that contains 8 solid bodies and 12 contact joints. I have implemented the contacts using dolfinx_mpc and it sometimes works end to end.

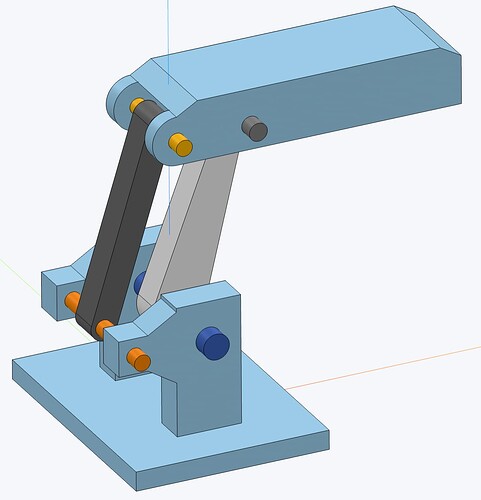

The whole assembly:
An example contact joint:
The mesh:
The solution:
Where it starts to go wrong is that if I regenerate my mesh to be slightly more fine or more coarse, some of the mpc constraints fail to add. They raise:
mpc_data = dolfinx_mpc.cpp.mpc.create_contact_inelastic_condition(
RuntimeError: Newton method failed to converge for non-affine geometry
The mesh shown above succeeds and it has a mesh size set to 5% of the length of the overall model. If I regenerate the mesh size set to 4.5% instead, I get this mesh:
Which, when I run the code, succeeds at adding 7 of the contacts, then fails on the 8th with:
Traceback (most recent call last):
File "/Users/matthewferraro/Documents/git/fenicsx_demo/backend/test_solver.py", line 479, in <module>
test_dino(0.45, 0.01)
File "/Users/matthewferraro/Documents/git/fenicsx_demo/backend/test_solver.py", line 366, in test_dino
domain, uh, stresses = solver.solve_static(
File "/Users/matthewferraro/Documents/git/fenicsx_demo/backend/solver.py", line 188, in solve_static
mpc.create_contact_inelastic_condition(
File "/Users/matthewferraro/miniconda3/envs/fenicsx-demo-backend/lib/python3.10/site-packages/dolfinx_mpc/multipointconstraint.py", line 461, in create_contact_inelastic_condition
mpc_data = dolfinx_mpc.cpp.mpc.create_contact_inelastic_condition(
RuntimeError: Newton method failed to converge for non-affine geometry
I can trigger the same failure by regenerating the mesh with a cell size of 5.5%:
In fact I can generate many meshes at many different cell sizes and there seems to be no pattern between what works and what doesn’t work. At each cell size the result is repeatable.
What causes the exception to be raised? What is happening inside dolfinx_mpc that involves Newton’s method at the time the constraints are being created? I have watched this talk but when I look at the c++ code I get a bit lost.
If a minimum viable example is required I can create one, but I would also be happy with just a conceptual explanation.
